W-NFE
WalliN W-NFE
Multi utility house entry for the
installation of supply pipes
WalliN W
Builder Package
Type selection
WalliN W-NFE Builder Package - Wall
Fields of application
Multi utility connection for supply lines (local, district or geothermal heating, water, electricity, telecommunication) for buildings with basement
Material
PVC housing, sealing inserts, external sealing element with flange seal, end plugs, and hose connectors
Properties
Gas- and water pressure-tight up to 1 bar; gas- and odour-tight (high-quality in terms of TA-Air); radon-tight; resistant to methane gas; external sealing element with sealing flange according to DIN 18533; seal width
90 mm; DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Sizes
DN 300 (299 - 303 mm)
Link: WalliN W Wall
Download
Product Information
Properties
- Split end plugs for easy installation
- Torque control nut: automatic torque without torque wrench
Fields of application
Secure and tight multi-section house entry for supply lines (local, district and geothermal heating, water, electricity, telecommunications) in buildings with basements.
Description
The WalliN W-NFE house entry multi utility is ideal for the gas and pressurized water-tight entry of heat pump pipes or local, district or geothermal heating pipes with diameters of 110, 90, 75, 50, 40 or 32 mm, optionally also available with a diameter of 125 mm, into the cellar - up to a pressure of 1 bar.
Note
Including casing pipe end plugs - thermal bridges are thus avoided!
Scope of supply
- Internal sealing element with 5 casing pipes for the installation of supply lines for heat pump, local, district or geothermal heating (supply and reflux), water, electricity, telecommunciation incl. protection covers
- External sealing element
Installation Set:
- NFE Sealing Insert: - 2 pcs.
Scope of application: 32, 40, 50, 75, 90, 110 mm
or blind, optionally available: 125 mm
primary sealing + secondary sealing, 2x end plug,
2x hose connection 125/125 - Electricity/Water Sealing Insert: - 2 pcs.
with stepless onion ring technology 26-50 mm
or blind, primary sealing + secondary sealing,
casing pipe end plugs including, end plugs split,
hose connection 80 - Sealing Insert - electricity + telecommunication:
clamping range: electricity 25 - 36 mm /
telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm,
primary sealing + secondary sealing, casing pipe
end plugs including, end plug, hose connection 80
Optionally available Gas installation sets:
- Extension Set

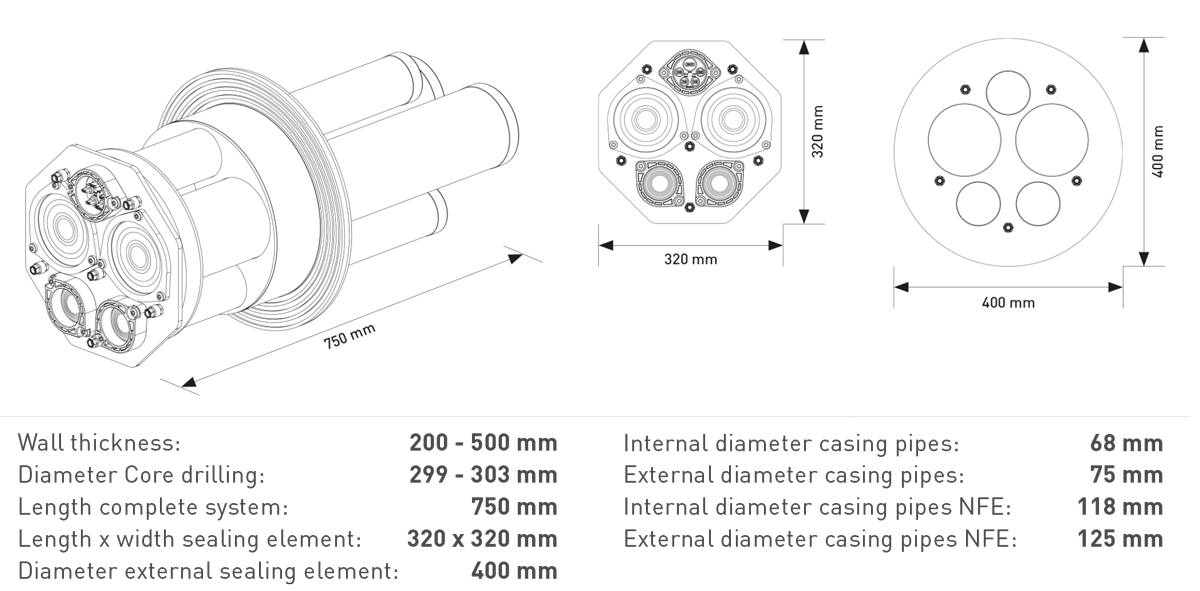

Technical Information
Certificates
To offer our customers the best possible quality and service, we are organized according to DIN EN ISO 9001:2015 and have this continuously checked and certified.
CERTIFICATE ISO 9001:2015
This certification documents our conformity of the quality management system
AEO-CERTIFICATE
Authorized Economic Operator "AEOC (customs simplification)"
Builder Package
- Gas- and pressure-tight system up to 1 bar – high quality in accordance with TA-Luft!
- IAF-tested radon tightness
- Methane gas resistant
- WU guideline: Stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
- External sealing element with sealing flange according to DIN 18533 with sealing width 90 mm
